Much stronger front housing
A purpose-built GearMotive front housing, substantially stronger than the stock ZF housing used by the Z-SEQ-5.
GearMotive NG-SEQ-5
5-speed sequential gearbox for 2JZ, LS and BMW M50
One gearbox. Multiple engines. Built to race.
5-speed sequential gearbox for BMW M50, Toyota JZ and GM LS — with more engine fitments to come.
Starting from 7390 EUR (VAT 0%)
Proven performance
5-speed sequential gearset proven in 1100+ Nm applications.
Multi-engine platform
BMW M50 · Toyota JZ · GM LS. More to come.
Stronger by design
Reinforced GearMotive housing with improved bearing support.
Built for easy servicing
Removable bellhousing and modular engine fitment.
The next generation

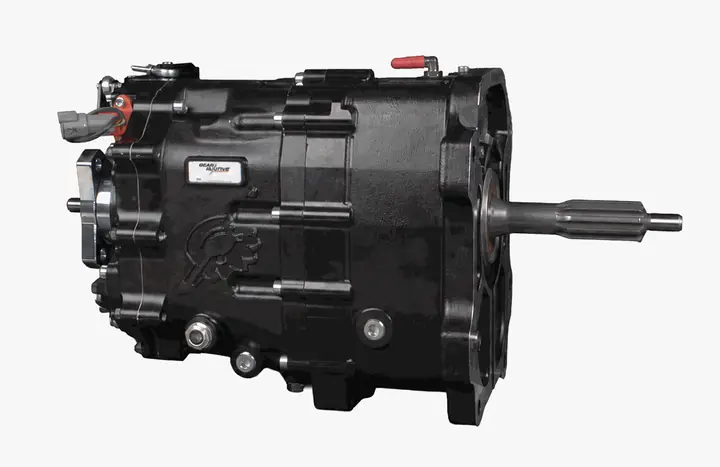

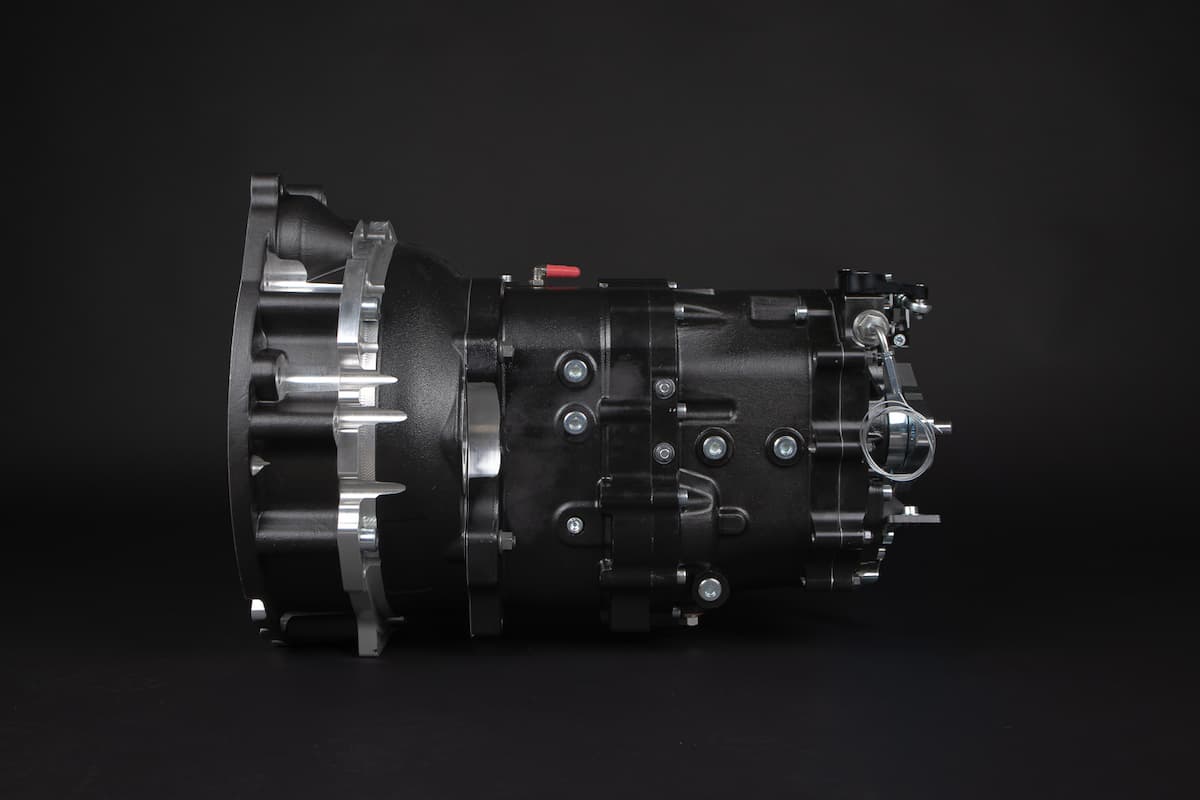

GearMotive NG-SEQ-5 Sequential
The GearMotive NG-SEQ-5 Sequential combines our proven 5-speed sequential gear technology with a completely redesigned housing and modular engine fitment system.
Designed for demanding Drift, Rally, Circuit and Drag applications, the NG-SEQ-5 brings improved strength, easier servicing and greater installation flexibility into one compact gearbox platform.
Proven GearMotive technology. A completely new platform around it.
What changes with NG-SEQ-5?
NG-SEQ-5 vs Z-SEQ-5
Both use GearMotive’s proven sequential gear technology. The NG-SEQ-5 adds a stronger front housing, stronger bearing options and a modular front end designed for engine fitment flexibility and easier servicing.
Stronger bearing options
Choose stronger bearing options for the NG-SEQ-5 platform.
Removable bellhousing
A separate, removable bellhousing makes the front end modular and easier to service.
Removable engine fitment
Adapt the gearbox to different engines with a removable engine fitment. More fitments will follow.
Three mounting angles
0°, 20° or 30° with the BMW M50–S50 series engine fitment. This option is specific to that fitment.
Easier clutch access
Leave the engine fitment, starter motor and hard-to-reach upper engine bolts in place when accessing the clutch.
Clutch access without disturbing the engine fitment
With a conventional removable-bellhousing gearbox, clutch access still requires removing the gearbox and bellhousing from the engine — including the hard-to-reach upper bolts. With NG-SEQ-5, separate the bellhousing from the engine fitment instead.
- Leave in placeEngine fitment, starter motor and upper engine bolts.
- RemoveGearbox and bellhousing from the engine fitment.
- Access the clutchWork from underneath while the engine fitment stays mounted.

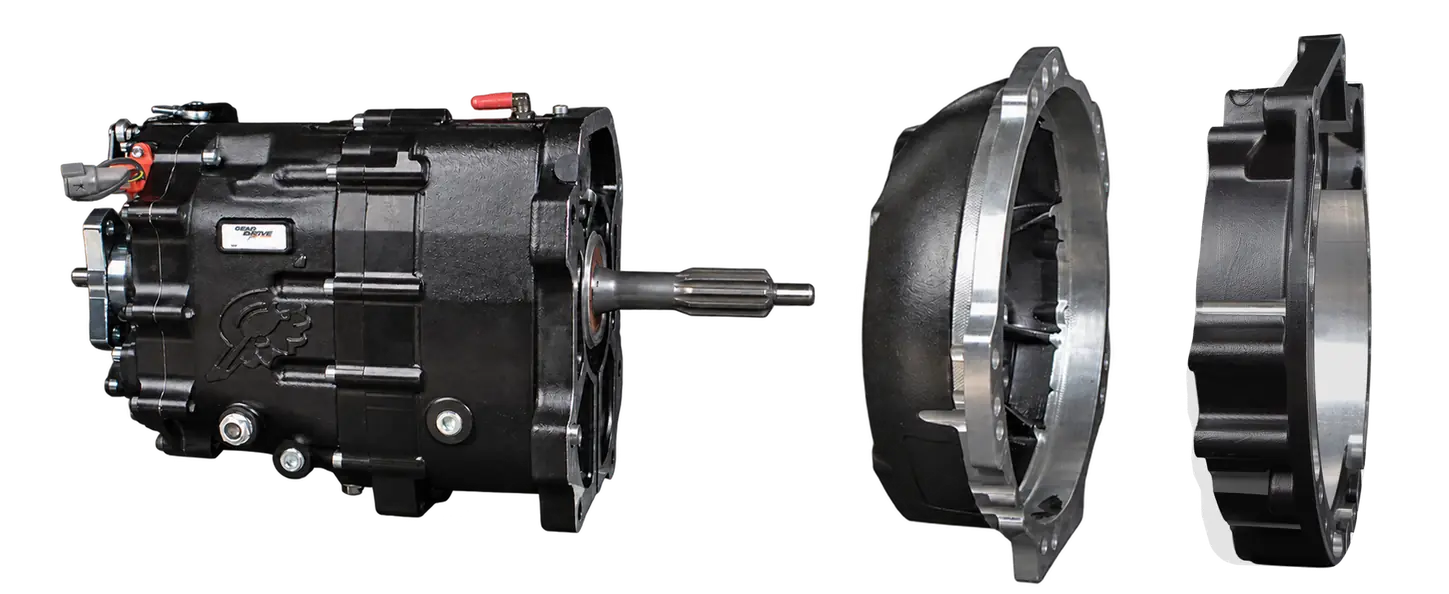

Modular engine fitment
One gearbox. Multiple engines.
The NG-SEQ-5 uses a compact, removable engine fitment system instead of conventional adapter plates or permanently welded bellhousings.
- BMW M50, Toyota JZ and GM LS
- Low-profile bolt-on design
- Removable bellhousing
- Three gearbox installation angles with BMW M50 engine fitment
- Multiple clutch release options
- Designed for faster gearbox removal and servicing
More engine fitments to come.
Learn more about engine fitments
Technical specifications
| Type | 5-speed sequential dogbox |
|---|---|
| Gears | Straight-cut |
| 5th gear | Direct 1:1 |
| Weight | Approx. 40 kg (depending on configuration) |
| Gear position sensor | Included |
| Engine fitments | BMW M50 / Toyota JZ / GM LS |
Ratio set 1
Rally / Circuit
| 1st | 2.23 |
|---|---|
| 2nd | 1.71 |
| 3rd | 1.38 |
| 4th | 1.16 |
| 5th | 1.00 |
Long 1st gear, smaller drops between gears.
Ratio set 2
Drift / Drag / Rallycross
| 1st | 2.73 |
|---|---|
| 2nd | 1.83 |
| 3rd | 1.42 |
| 4th | 1.16 |
| 5th | 1.00 |
Longer 1st gear, larger drops between gears.
Pricing (VAT 0%)
NG-SEQ-5 Sequential Gearbox
7390 EUR
Removable Bolt-on Bellhousing
490 EUR
Modular Engine Fitment
490 EUR
Sequential Shifter
590–890 EUR
Display, ECM and Wiring Kit
390 EUR
Heavy Duty Input Shaft
250 EUR
Prop Shaft Adapter
90–290 EUR
NG-SEQ-5 components
GearMotive Housing
The reinforced GearMotive front housing provides improved housing strength and bearing support while maintaining a compact overall package.
- Stronger roller bearings with much stronger housing core
- Compact design - size of ZF S5D gearbox
- Designed specifically for GearMotive Sequential
- Enables the new modular engine fitment system
- Allows usage of a gear position sensor in the front housing for even greater accuracy
- PRICE: NG-SEQ-5 Sequential Gearbox 7390 EUR (VAT 0%)

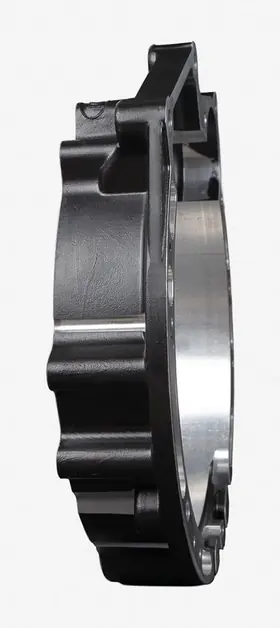

Modular Engine Fitment
One of the biggest changes in the NG-SEQ-5 is the new modular engine fitment system. The same core gearbox can now be adapted to different engines.
- available for BMW M50, Toyota JZ and GM LS, more to come
- Compact, low-profile design on bell housing
- Bolt-on construction
- Removable bellhousing
- Three gearbox installation angles for BMW M50 model (0/20/30 degrees)
Easier servicing: access the clutch while leaving the engine fitment and starter motor in place, or remove only the gearbox with the complete bellhousing left on the engine.
The BMW M50 version retains the familiar bolt-on concept for replacing a ZF gearbox.
- PRICE: Modular engine fitment 490 EUR (VAT 0%)

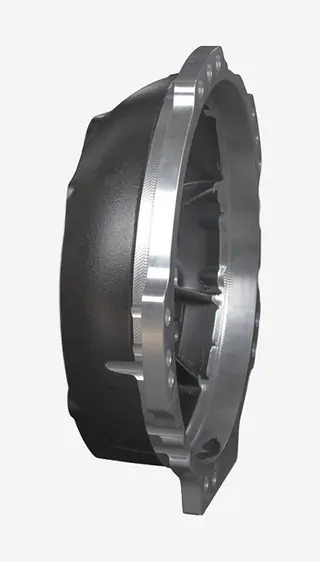

Removable Bellhousing
The removable, engine-specific bellhousing system makes gearbox installation, removal and servicing easier, without permanently welded bellhousings.
- Compact, low-profile design
- BMW OEM-style clutch fork or compatible hydraulic release bearing (for example Tilton 0-, 1- and 8000-series)
- Retain your existing flywheel and clutch in most applications, subject to compatibility
- Remove the gearbox with the bellhousing and clutch release system left in place
High-profile flywheels may require a compact hydraulic release bearing for clearance.
- PRICE: Removable bellhousing 490 EUR (VAT 0%)

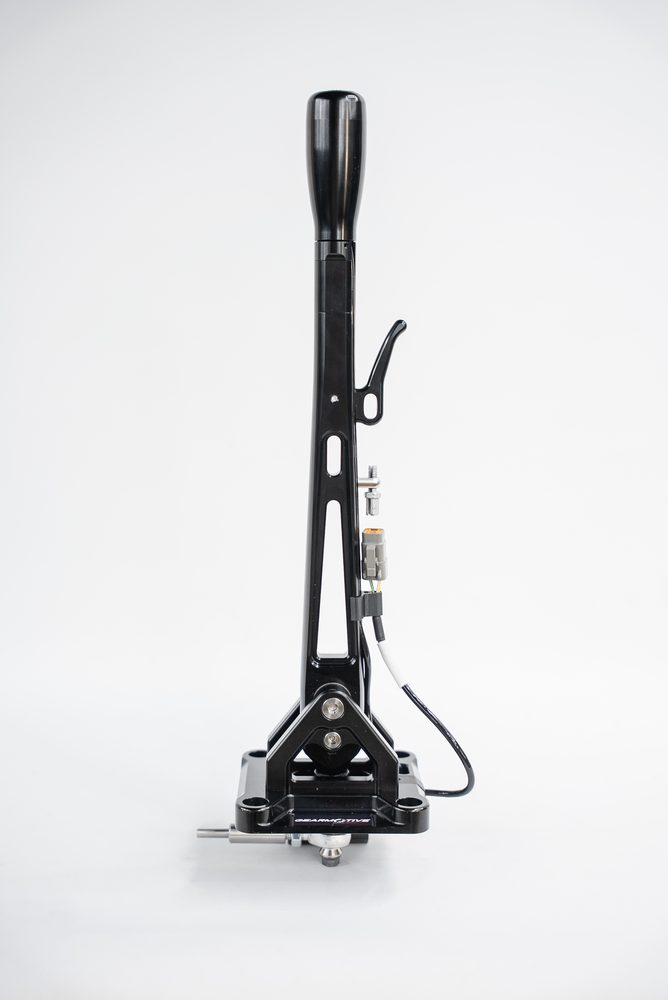

Sequential Shifter
The next-generation GearMotive Sequential Shifter has been redesigned for lighter weight, easier installation and precise shifting.
- Lightweight aluminium construction
- Integrated self-centering mechanism
- Strain gauge integrated directly into the shift knob
- Adjustable shifter height with optional extension
- Complete linkage kit included
- Designed for straightforward setup and adjustment
- Shift-cut capability when used with compatible electronics
PRICE:
- Sequential shifter 590 EUR (VAT 0%)
- Sequential shifter with shift-cut 890 EUR (VAT 0%)

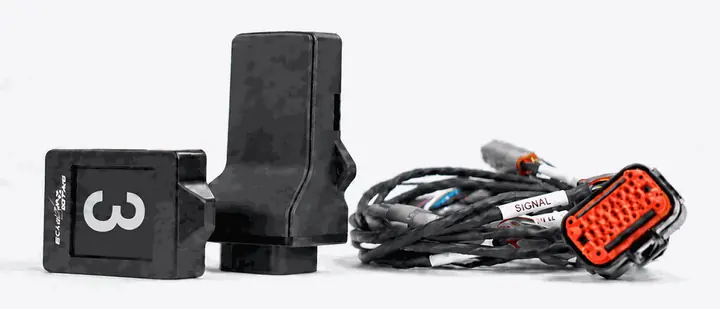

Display, ECM and Wiring Kit
The GearMotive electronic control system combines the full-colour touchscreen Gear Display with the GearMotive Electronic Control Module (ECM).
- Real-time gear position display
- Full-colour touchscreen
- Adjustable shift-cut sensitivity
- Adjustable shift-cut duration
- Configurable shift-cut modes
- Ready-made wiring kit
- Integration with compatible aftermarket ECUs
- Designed to work together with the GearMotive strain-gauge shifter
A standalone version of the Gear Display is also being developed for applications where the GearMotive ECM is not required.
- PRICE: Display, ECM & wiring kit 390 EUR (VAT 0%)

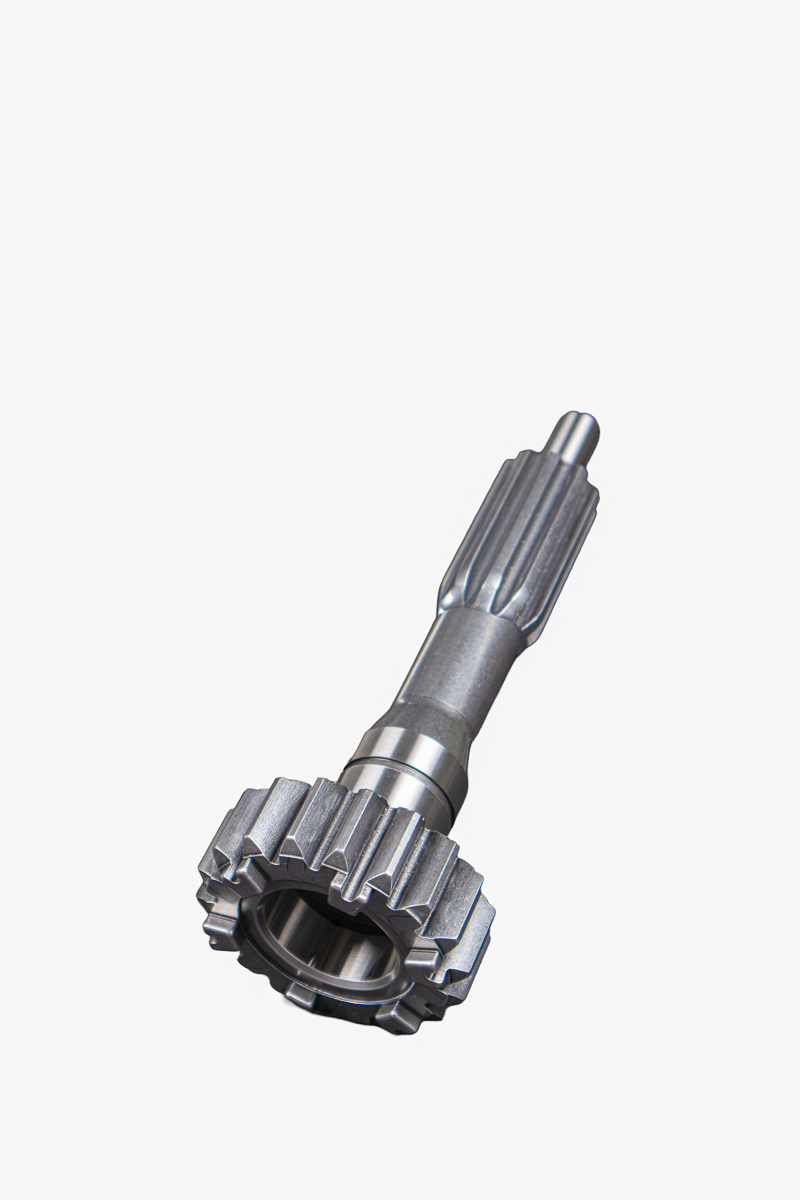

Heavy Duty Input Shaft
For high-power and demanding motorsport applications, the NG-SEQ-5 sequential is available with a Heavy Duty input shaft.
- Designed for high drivetrain loads
- Recommended for demanding high-power applications
- Compatible with the NG-SEQ-5 sequential platform
- Available as an optional upgrade
- PRICE: HD input shaft 250 EUR (VAT 0%)

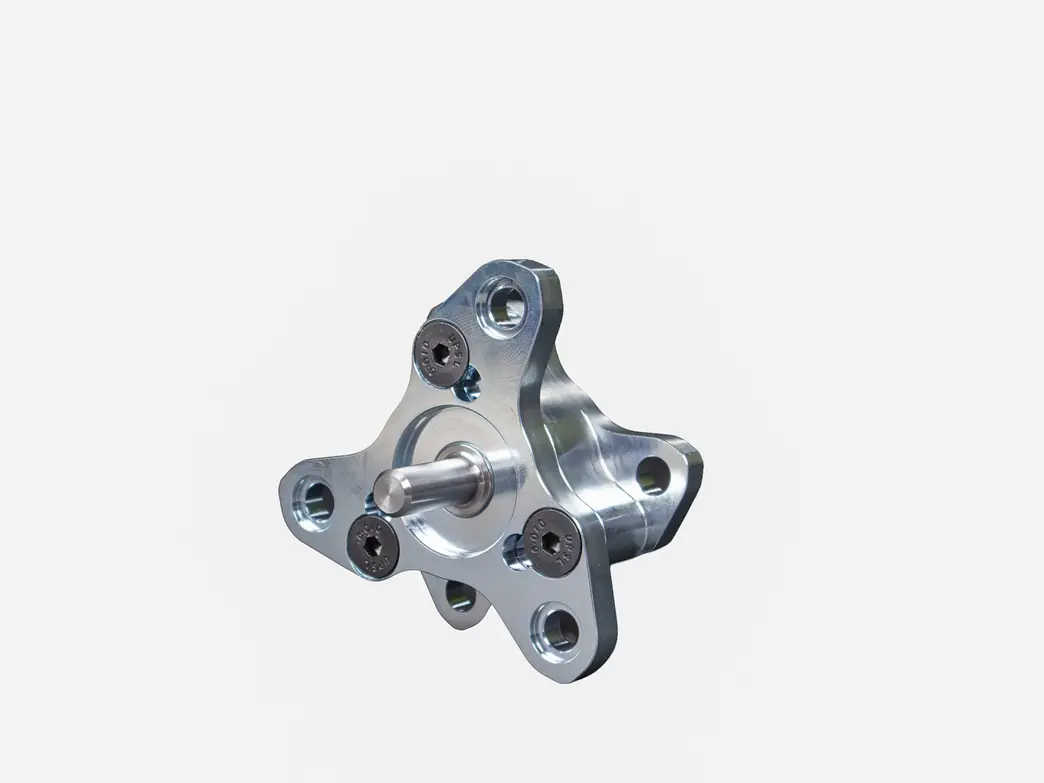

Prop Shaft Adapter
GearMotive prop shaft adapters provide additional flexibility when adapting the NG-SEQ-5 sequential to different drivetrain configurations.
- Allows different output flange configurations
- Can increase output flange size
- Can be used to adjust effective transmission length
- Helps retain suitable existing prop shaft and flex disc configurations
- Multiple configurations available depending on application
PRICE:
- GS5-39 replacement adapter (PCD 96/105/110) 290 EUR (VAT 0%)
- Getrag replacement adapter (PCD 78mm) 90 EUR (VAT 0%)
See GearMotive gearboxes in real motorsport use: explore our References and Videos.
Read about the development and technology behind the NG-SEQ-5 in Adapter plate or welded bellhousing? A third option.
Upgrading from a BMW ZF box instead? See the GearMotive Z-SEQ-5 Sequential Dogbox — the bolt-on replacement for the BMW ZF S5D.
